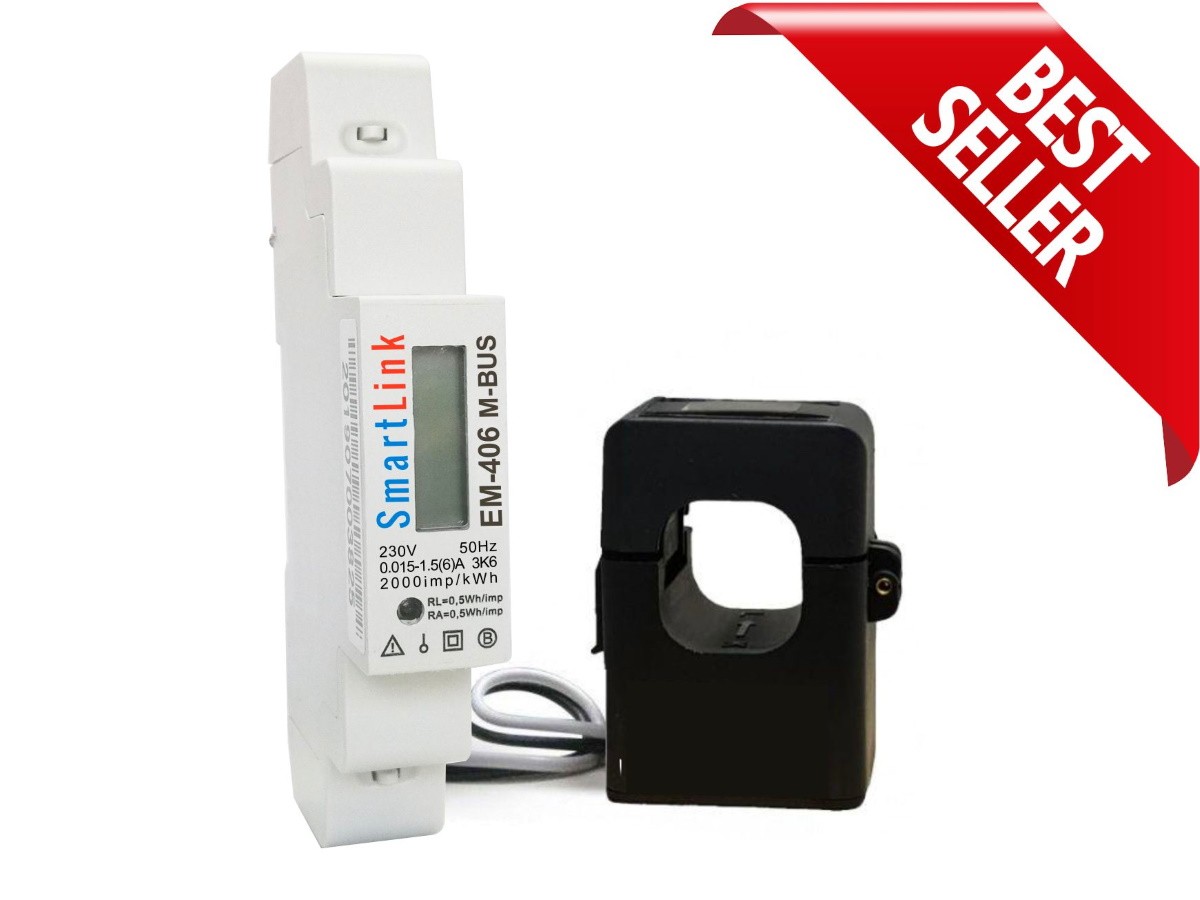

M Bus Single Phase Electric Meter EM-406

Simple, compact unit for M-Bus reading

• M-BUS Applications ONLY
• Single Phase M-BUS meter
• 100Amp
• 1 module din rail mounted
• Current transformer operated – CT comes standard
• Easy to install in current Consumer Unit

If you want to use this meter for domestic use, please order the EM400

The EM406 is a single phase kWh M-Bus meter with the following key features:

• LCD display in a 1 module (18mm) casing and a high accuracy class (Class B)
• Low starting current which makes it exceptionally suited for photovoltaic energy and general use.
• Excellent long term stability which is designed for DIN, IEN and EN standards and has a 1 year warranty.
• MID B & D approval which ensures the meter is produced to the highest European and International standards.
• For connection rate of up to 100A.

If you are connecting to a BMS system, please ensure you have the following information available if you want us to program the unit (additional cost) :-

Baud Rate :  2400 | 4800  |  9600
Address  :  1 – 250
Parity  : None | Even

KEY FEATURES

For use with M-Bus Business Management Systems only.
