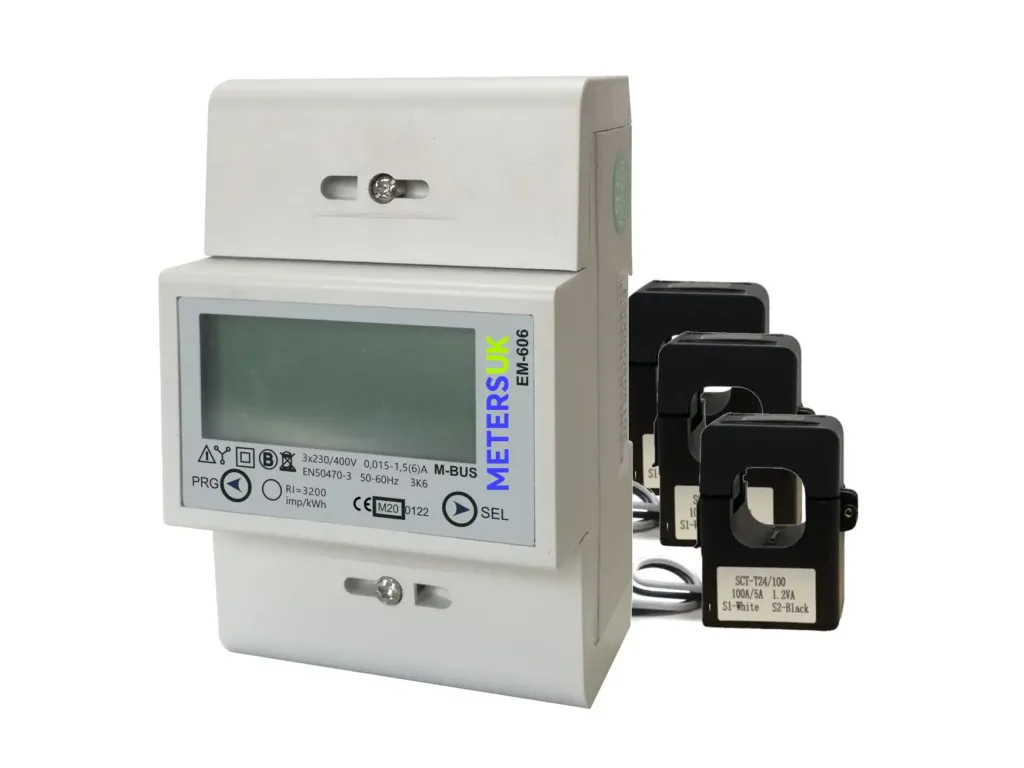

EM 606 Mbus main photo 1 copy

EM606 Three Phase M-Bus Electric Meter

Be the first to leave a review.

From £99.00 Ex VAT

current transformers w
Split Core Current Transformers
£18.30 Ex VAT
Categories: , , SKU: 5061034790881
Share
Tweet
Pinterest
Email

EM 606 Three Phase M-Bus Electric Meter

KEY FEATURES

The EM606 is three phase kWh M-Bus meter.

  • Three phase kWh M-Bus meter with a LCD display
  • 4 module (60mm) casing, ensuring a high accuracy (Class1)
  • Excellent, long term stability which is designed for DIN, IEN and EN standards with a 1 year warranty
  • MID B approval which ensures the meter is produced to European and International standards and legally suited for both business and invoicing purposes
  • For connection rate from 100Amp up to 950Amp

If you are connecting to a BMS system, please ensure you have the following information available if you want us to program the unit (additional cost) :-

Baud Rate : 2400 | 4800 | 9600
Address  :  1 – 250
Parity  : None | Even

Weight 0.382 kg

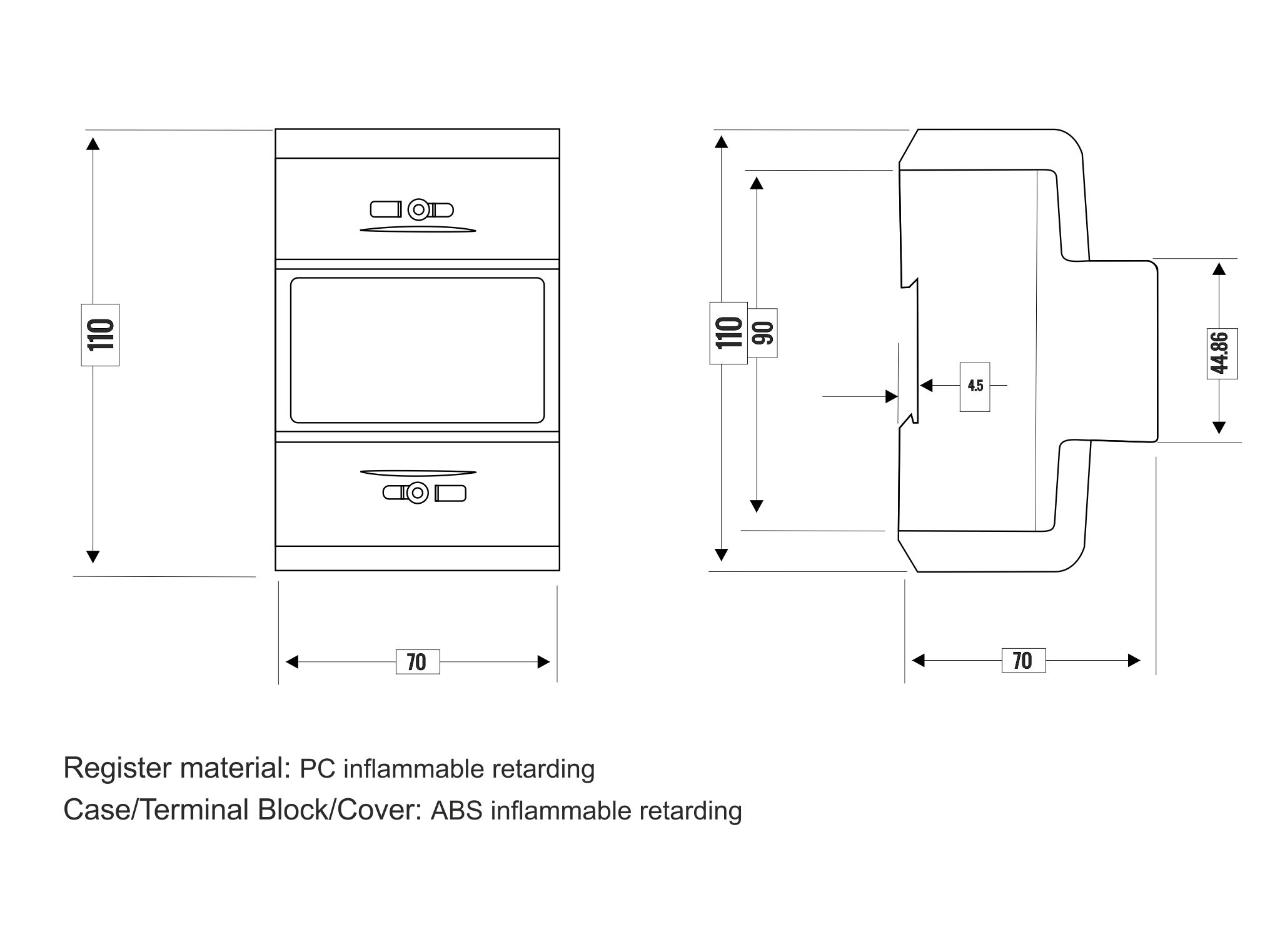

Dimensions 70 × 101 × 67 cm
Din Rail Meter

Meter + Fuse, Single Unit, Din Rail Meter Package
