Modbus three phase electric meter em-mod3ct

Modbus Three Phase Electric Meter EM-MOD3CT

Rated 5.00 out of 5 based on 2 customer ratings

(2 customer reviews)

From £99.00 Ex VAT

Din Rail Meter

Clear

Program Meter *

Baud Rate *

Parity *

Network Address (1 - 247) *

Split Core Current Transformers

£18.30 Ex VAT

Categories: Electric, Electric Meters, Three PhaseSKU: 5061034791956

KEY FEATURES

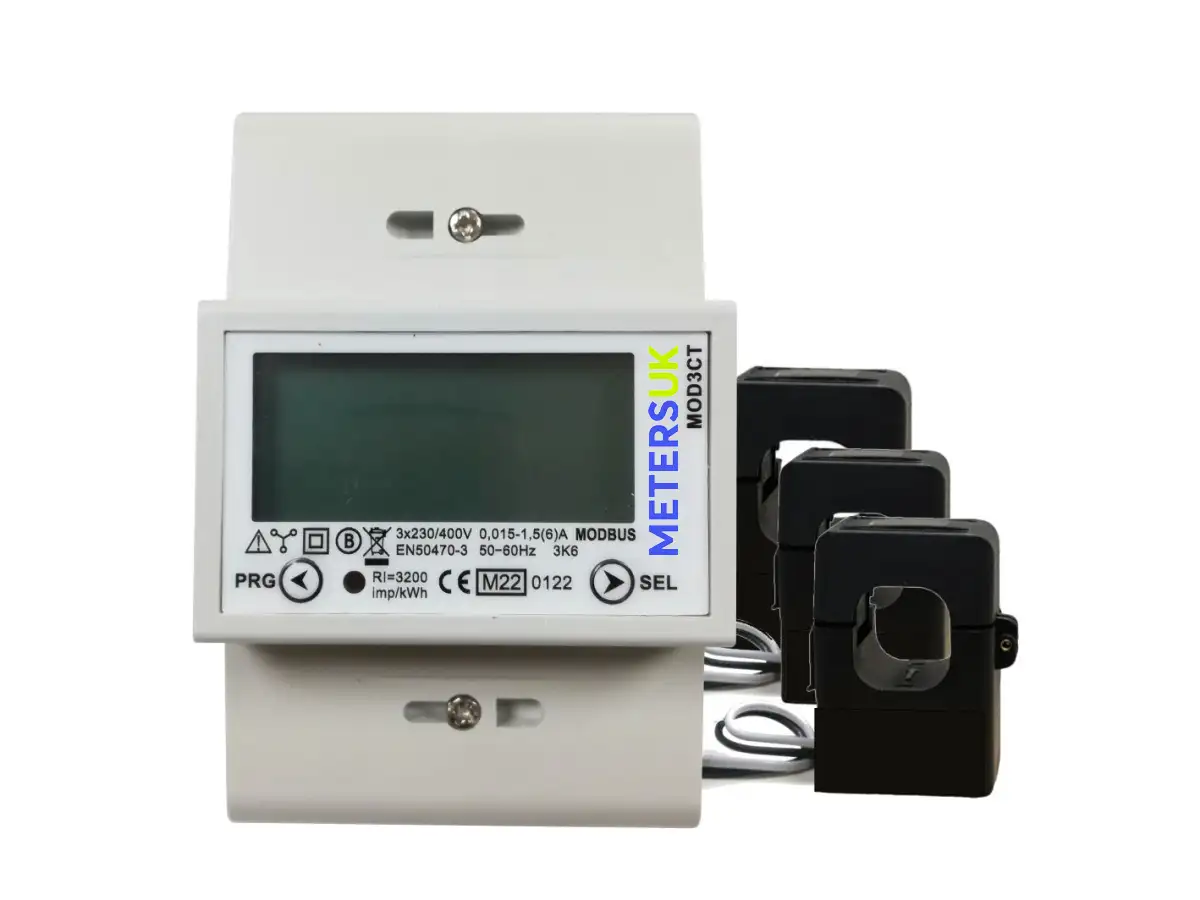

The MOD3CT is three phase kWh Modbus meter.

Three phase kWh Modbus meter with a LCD display
4 module (60mm) casing, ensuring a high accuracy (Class1)
Excellent long term stability which is designed for DIN, IEN and EN standards with a 1 year warranty
MID B approval which ensures the meter is produced to European and International standards and legally suited for both business and invoicing purposes
For connection rate from 100Amp up to 950Amp

If you are connecting to a BMS system, please ensure you have the following information available if you want us to program the unit (additional cost) :-

Baud Rate : 9600 | 19200
Address : 1 – 250
Parity : None | Even

Weight	0.377 kg

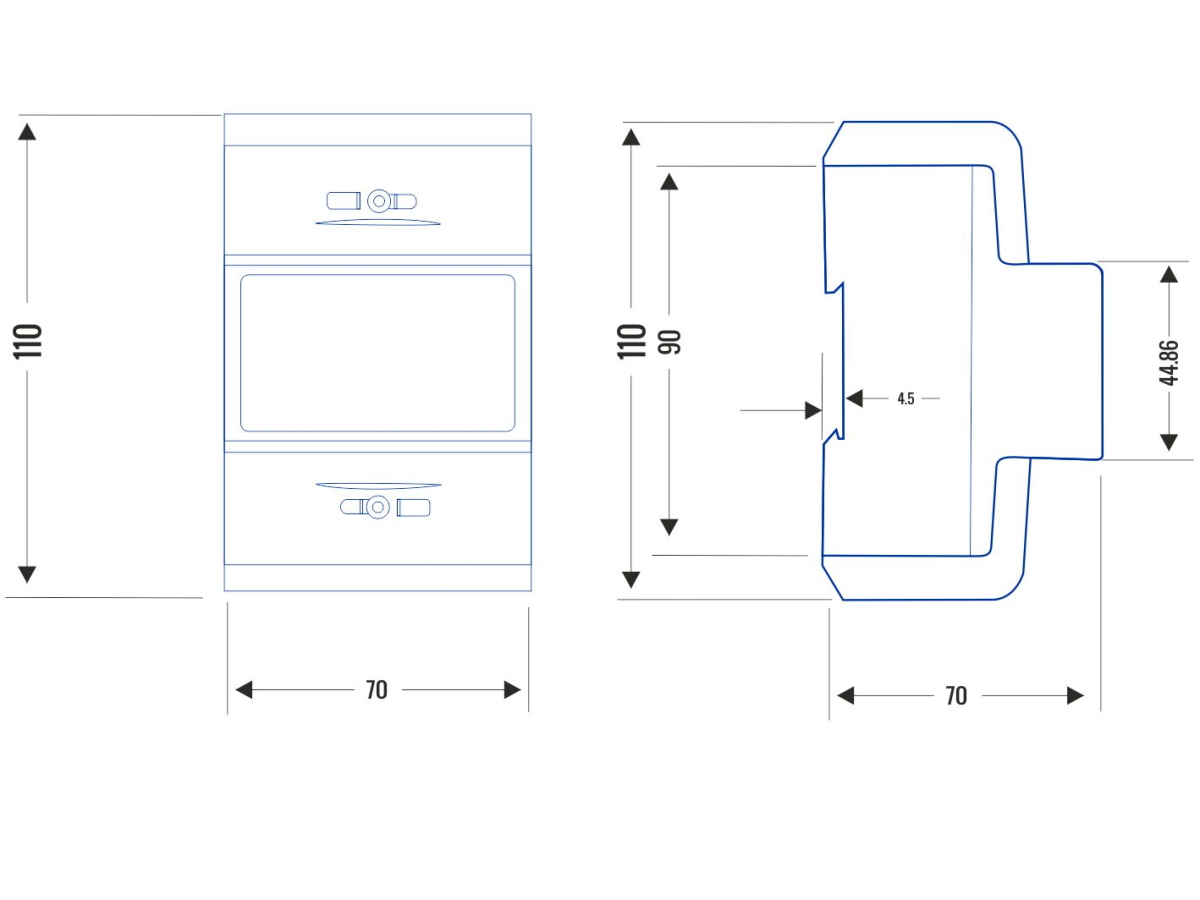

Dimensions	70 × 101 × 65 cm
Din Rail Meter	Din Rail Meter Package, Meter + Fuse, Single Unit
