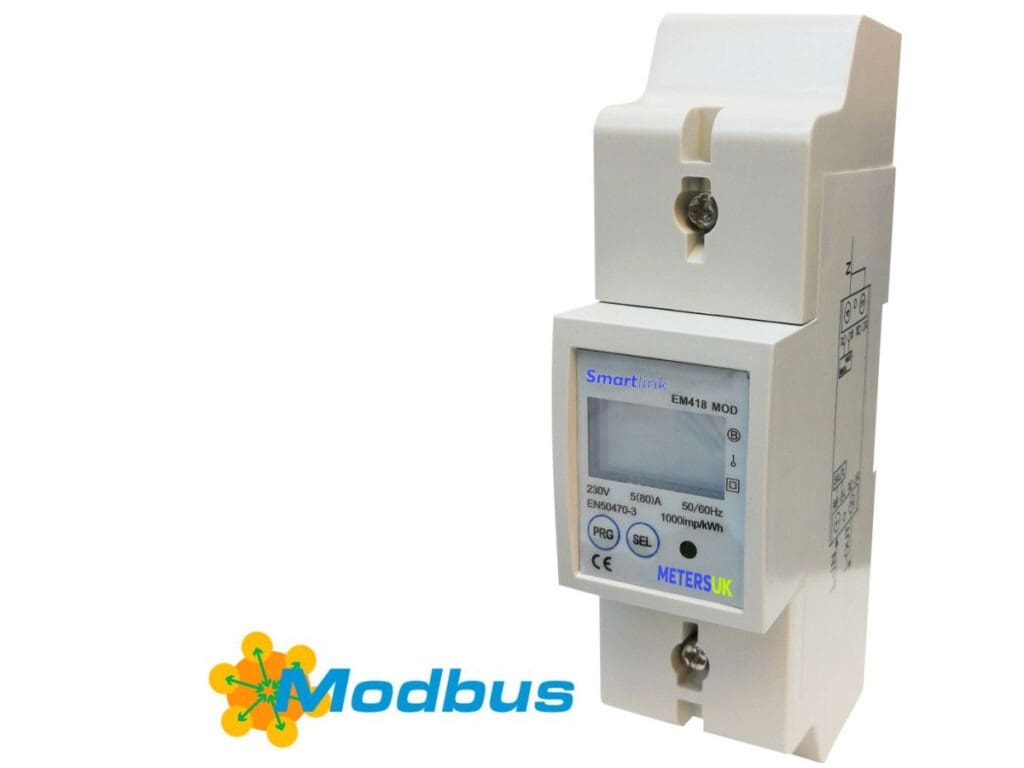

Single Phase Modbus Meter 80Amp EM418

If you need a single phase meter with amperage of 80Amp, and is din rail mounted, this meter is for you

If you want to use this meter for domestic use and not connect to a BMS, please state “No” for programming. However, we would recommend the EM400 or EM445 instead, to avoid any confusion when installing.

If you are connecting to a BMS system, please ensure you have the following information available if you want us to program the unit (additional cost) :-
Baud Rate :  1200  |  2400  |  4800  |  9600
Address  :  1 – 256
Parity  : None | Even

Main Features & Functions
• Single Phase meter, 2 din modules
• Accuracy class 1 according to EN50470-3
• LCD display, 5 integer 1 decimal
• Large clear backlight display
• Smart communication port, Modbus RTU with 16 bit CRC
• Energy consumption LED
• 1000 imp per kWh
• Direct metering up to 80A
• Can be set through front panel
• Memory back-up (EEprom)
